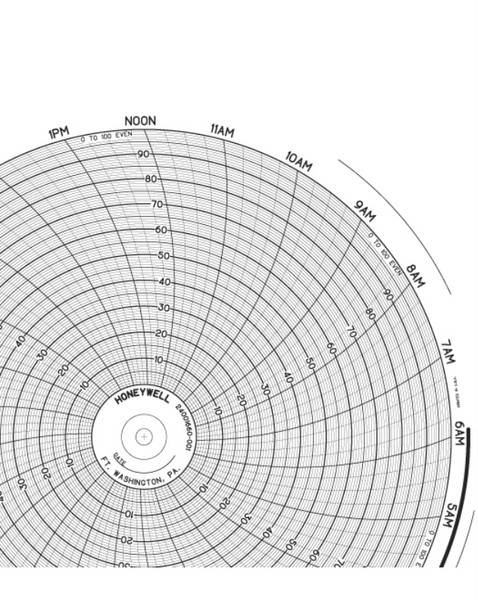

Honeywell 24001660-001, 0 to 100, 24-Hour
| Honeywell chart no. | 24001660-001 |
|---|---|
| Cross-reference | Graphic Controls 10222488 |
| Fits | Honeywell DR4200 and DR4500 10" circular chart recorders |
| Chart size | 10.313" diameter (sold as the 10" chart) |
| Rotation | 24 hours per revolution |
| Range | 0 to 100 |
| Scale | Linear (uniform scale) |
| Grid / graduations | 0 - 100 Uniform along the Arc 0 TO 100 EVEN (10 TO 90 BY 10 ) |
| Pack | 100 charts per box |
Need the 7-day version? 24001661-001 is the same scale on a 7-day chart.
How the number works: 24001660 = 24-hour charts, 24001661 = 7-day charts. The -xxx after it is the range and scale.
Pens: Honeywell DR-series pens fit these recorders, e.g. 82-39-0202-06 (red). See the 82-39 pen series.
Not the right range? Search all Honeywell 10" charts in Find My Part.
Honeywell Circular Chart Paper Range: 0 to 100 (Uniform Scale). Rotation: 24H. 100 per box Ink Writing Honeywell Circular Chart, Box/100
