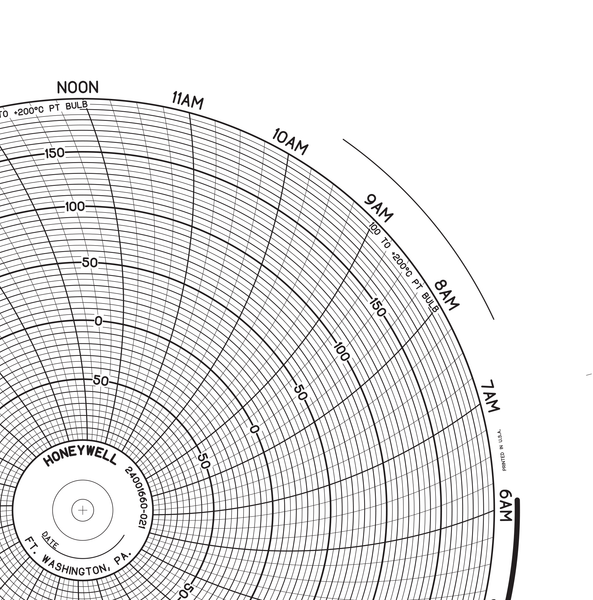

Honeywell 24001660-021: RTD (Pt100, α=0.00391), -100 to +200 °C, 24-Hour
| Honeywell chart no. | 24001660-021 |
|---|---|
| Cross-reference | Graphic Controls 1034974 |
| Fits | Honeywell DR4200 and DR4500 10" circular chart recorders |
| Chart size | 10.313" diameter (sold as the 10" chart) |
| Rotation | 24 hours per revolution |
| Range | -100 to +200 °C |
| Scale | RTD (Pt100, α=0.00391) |
| Grid / graduations | -100 - +200 Non-Uniform -100 TO +200 °C PT BULB (50 TO 0 TO 150 BY 50) |
| Pack | 100 charts per box |
Need the 7-day version? 24001661-021 is the same scale on a 7-day chart (special order).
How the number works: 24001660 = 24-hour charts, 24001661 = 7-day charts. The -xxx after it is the range and scale.
Pens: Honeywell DR-series pens fit these recorders, e.g. 82-39-0202-06 (red). See the 82-39 pen series.
Not the right range? Search all Honeywell 10" charts in Find My Part.
Chart Size: 10.313"
Time Rotation: 24H
Number of Ranges: 1
Ranges: (-100) - (+200), Non-Uniform50 TO 0 TO 150 BY 50
